High energy density, low self-discharge and good safety.
Limited charging voltage: 4.2V, discharge cut-off voltage: 3.0V. Nominal voltage: 3.7V.
Wide operation temperature range(-40℃~+55℃)
Suit for large current continuous discharge and pulse discharge.
Long cycle life, ≥1200 times.

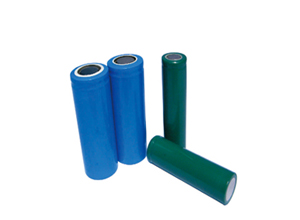

Performance of CFX Cells (at 23℃)
GB | IEC | Max.Dimension(mm) | Weight(g) | Nominal Voltage(V) | Cut off voltage(V) | Capacity(Ah) | Max. Operating current(mA) | Pulse current(mA) | Operating temperature(℃) | 参数下载 |
---|---|---|---|---|---|---|---|---|---|---|
ICR18650 | Steel shell | 18.0×65.0 | 50 | 3.7 | 3.0 | 2.4 | 2200 | 6600 | -40~+55 | |
ICR26650 | Steel shell | 26.0×65.0 | 90 | 3.7 | 3.0 | 4.0 | 4000 | 12000 | -40~+55 |
